Description

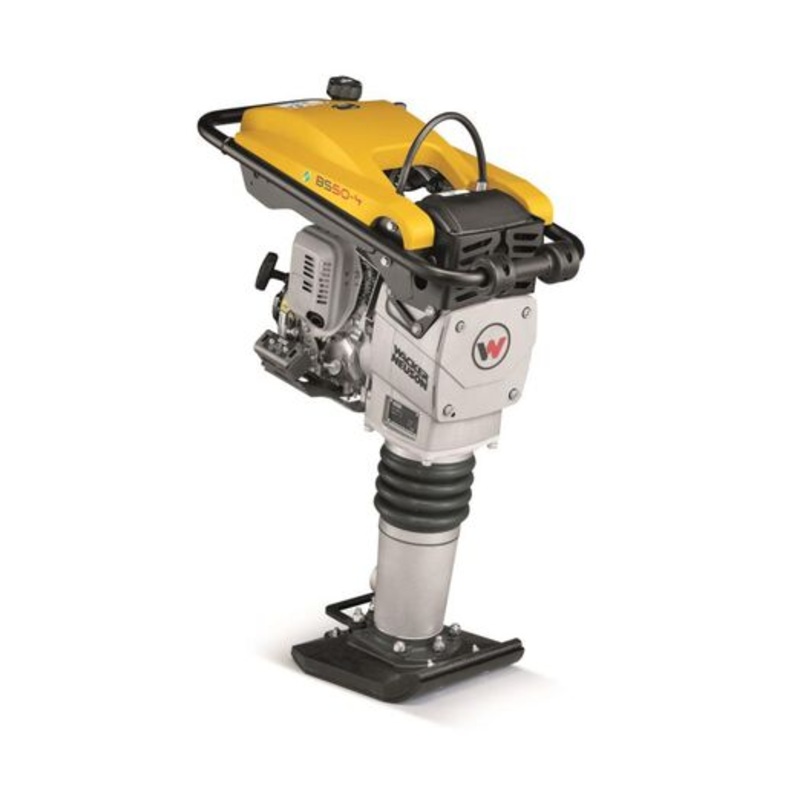

Wacker Neuson BS50-4As (5100030598) 2.7kW 4-Stroke Vibrator Rammer
Wacker Neuson’s 4 stroke rammers are classified by an excellent performance which is sustainably convincing. The high stroke energy, high percussion rate and long shoe stroke combined with a fast advance travel achieve excellent compaction results. Well thought-out features make the use of the 4 stroke rammers even more user-friendly, extend the service life and reduce maintenance to a minimum.
Features:
- Fast starting due to a small pump to the carburetor
- Strong stroke for heavy, cohesive soils
- Integrated oil deficiency protection with automatic shutdown when the engine is started with insufficient oil level
- Premium air filter ensures an almost dust-free engine operation and provides three times longer change intervals
- Large and flexible transport lug
- Easy loading and stowing by transport rollers on the handle
Specifications:
- Engine/motor: Honda GXR 120
- Engine/motor type: Air-cooled single-cylinder four-cycle gasoline engine
- Displacement: 121cm
- Fuel consumption: 1L/h
- Rated performance(DIN ISO 3046-1): 2.7kW
- Motor run speed: 4100rpm
- Fuel tank capacity: 2.9L
- Percussion rate: 656bpm
- Stroke on the ramming shoe: 61mm
- Impact force: 16kN
- Operating speed: 7.1m/min
- Surface capacity – compaction: 119m/h
- Ramming shoe size (W x L): 280mm x 340mm
- Dimensions (L x W x H): 673mm x 343mm x 940mm
- Weight: 65kg
Warranty:
- 5 Years Warranty Covered By Wacker Neuson Australia
