Description

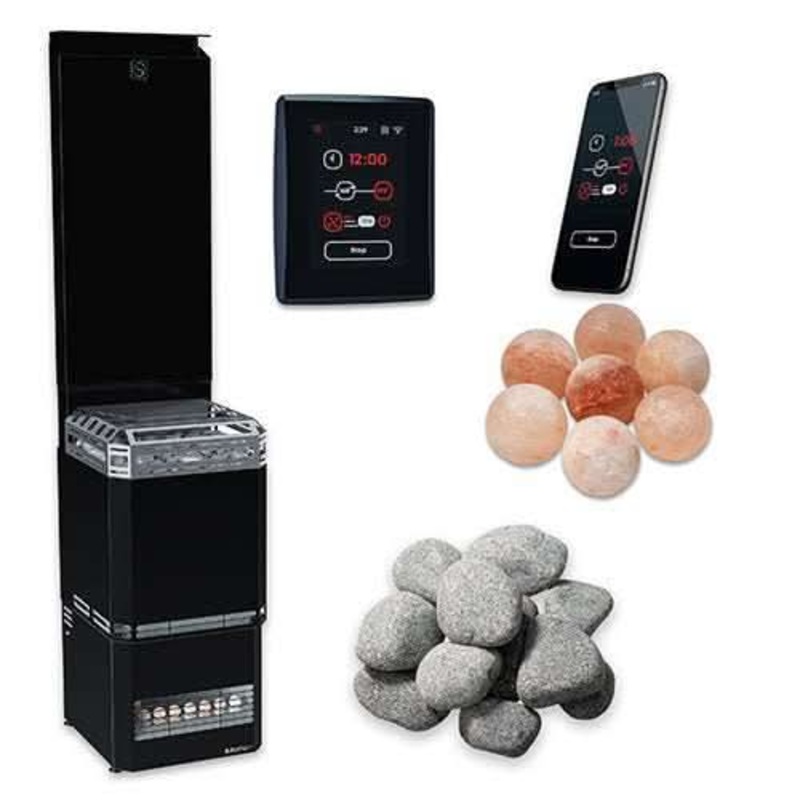

The Saunum Air L 13 Sauna Heater Package comes complete with the Air L 13 Sauna Heater, AirIQ Wi-Fi Control, Sauna Stones, and Himalayan Salt Spheres. Air L 13 is a unique heater with a sauna climate regulating system that is ideal for creating an extraordinary sauna session in a more intensively used sauna. The large stone volume and the patented air-blending system ensure exceptional steam that is soft and long, and evenly distributed throughout the sauna.
Thanks to the oxygen-rich air, breathing is easier, and the negative salt ions from the spheres are beneficial for your respiratory system and skin. This 13kW heater package is designed for sauna rooms from 317to 565 cubic feet (CF).
- Revolutionary Air Mixing Technology No more cold feet! No other sauna heater has Saunum’s patented air blending system, which mixes cooler, oxygen-rich air from the floor with hot, oxygen-poor air off the ceiling and distributes it throughout the room for a more even temperature and better breathability. Saunum ensures that heat and oxygen are more consistentfrom head to toe.
- Scandinavian Design With its elegant black steel finish, Saunum combines contemporary Scandinavian design and premium-quality materials.
- Massive Stone Capacity Stones are the heart of a Nordic sauna. Greater stone capacityresults in softer, more even heat, and can produce more luxurious steam. The Air L boasts a massive 198 pound stone capacity.
- Himalayan Salt Reservoir Himalayan Salt Spheres arepositioned within the air stream so that salt ions are propelled throughout the sauna to deliver health benefits more effectively.
- For sauna rooms from 317to 565 cu. ft.
- UL-listed for safety.
Features
Air L 13 Sauna Heater
- Revolutionary Air Mixing Technology No more cold feet! No other sauna heater has Saunum’s patented air blending system, which mixes cooler, oxygen-rich air from the floor with hot, oxygen-poor air off the ceiling and distributes it throughout the room for a more even temperature and better breathability. Saunum ensures that heat and oxygen are more consistentfrom head to toe.
- Scandinavian Design With its elegant black steel finish, Saunum combines contemporary Scandinavian design and premium-quality materials.
- Massive Stone Capacity Stones are the heart of a Nordic sauna. Greater stone capacityresults in softer, more even heat, and can produce more luxurious steam. The Air L boasts a massive 198 pound stone capacity.
- Himalayan Salt Reservoir Himalayan Salt Spheres are positioned within the air stream so that salt ions are propelled throughout the sauna to deliver health benefits more effectively.
- Wi-Fi Control The available AirIQ Wi-Fi Control allows you to activate a tailored sauna profile and have your custom sauna ready at the time that you specify on your mobile device.
- Dry your Sauna Go ahead, toss water onto the rocks! Saunum is engineered for water-tossing, and when you’re done enjoying the steam, the patented fan system will conveniently help dry your sauna.
- UL Certification Safety and reliability are priorities at Saunum, and each product is engineered to exceed strict UL standards.
- Available AromatherapyAdd another sensory layer with Saunum’s optional aromatherapy system, which infuses aroma into the steam to further transform your experience.
- For sauna rooms from317to 565cu. ft.
AirIQ Wi-Fi Control
- Temperature selection ranges from 104F – 194F (40C – 90C)
- Allows you to set the operating time of the heater: Up to 1 hour in a private sauna, up to 6 hours in a public sauna
- Allows you to select up to 3 preset sauna settings: Selectable temperature, time, climate device speed
- Classic Nordic Steam Sauna
- For temperatures from 140F – 194F (60C – 90C). Valve of the Climate Device open to 25% with speed level 1.
- Humid Steam-Rich Sauna
- For temperatures from 113F – 140F (45C – 60C). Valve of the Climate Device open to 100% with speed level 2 or 3.
- Mild, Relaxing Sauna
- For temperatures from 104F – 131F (40C – 55C). Valve of the Climate Device open to 25% with speed level 1.
- AirIQ Wi-Fi allows for sauna session scheduling for a specific day, time, and sauna type for the week
- Built-in Wi-Fi interface for Saunum mobile app available on AppStore and Google Play
- Modbus integration for smart home connection
- Notifications will be conveniently displayed directly onto your mobile device via the Saunum mobile app
- Sauna is Ready
- Heating Status
- Door is Open
- Overheating Protection Applied
- Multi-language menu includes English, German, Estonian, Finnish, Russian, Swedish, and Slovenian
- Outside sauna room installation
- Screen lock
- Child safety lock
- Temperature sensor
- Door sensor
Sauna Stones
- High-quality olivine diabase raw stone
- Rounded, pre-washed, and ready to use
- Durable with high-heat capacity
- Stones range from 2″ to 4″ (5-10 cm)
Includes
Air L 13 Sauna Heater
- 13kW Sauna Heater
- Himalayan Salt Spheres (7)
- Himalayan Salt Tray
- Hot Air Intake Cap
- Hot Air Intake
- Stone Basket
- Air Outake Grille
- Cool Air Intake Valve
- Protective Grill
- Temperature Sensor
- Installation and Operation Manual
- 2-Year Limited Warranty (Consumer Use)
AirIQ Wi-Fi Control
- Soft-Touch Display Panel (Wi-Fi App-Based Updates and Operation)
- Wall Mounting Plate and Fasteners
- Power Unit
- Installation and Operation Manual
- 2-Year Limited Warranty (Consumer Use) and 1-Year Limited Warranty (Commercial Use)
Sauna Stones
- 198 lbs of 2″ to 4″ (5-10 cm)Round Sauna Stones
Specifications
|
Model |
AIR L 13 PKG |
|
Heat Equalizing System |
|
|
Model |
AIR L 13 |
|
Certification/Global Safety Rating |
UL (Underwriters Laboratories) |
|
Heat/Steam Equalizer Module |
3-Speeds, Whisper-Quiet Operation |
|
Ceiling Hot Air Intake |
17.72″ x 4″ (450.09 x 101.6mm) |
|
Cool Air Intake Type |
Adjustable Valve, Side-Mounted, 12″ (304.8mm) Off Floor |
|
Cool Air Intake Size |
2″ x 2.75″ (50.8 x 69.85mm) |
|
Blended Air Output |
4.31″ x 14.13″ (109.47 x 358.9mm) |
|
Himalayan Salt and Aroma Tray Type |
Removable, Slotted |
|
Himalayan Salt and Aroma Tray Size |
16.5″ x 4.5″ (419.1 x 111.76mm) |
|
Sauna Heater System |
|
|
Model |
AIR L 13 |
|
Certification/Global Safety Rating |
UL (Underwriters Laboratories) |
|
Room Size |
317-565 cu.ft. |
|
Wattage Rating |
13000 |
|
Operating Voltage |
240V |
|
Phase |
Single |
|
Amperage |
54A |
|
Circuit Breaker |
70A |
|
Wire Size to Power Unit |
(2) 6 + N + G |
|
Minimum Ceiling Height |
79″ (2007mm) |
|
Stone Capacity |
198 lbs (90 kg) |
|
Stone Size |
2″ – 4″ (5-10 cm) |
|
Heater Width |
19″ (483mm) |
|
Heater Depth |
18.1″ (460mm) |
|
Heater Height (Including Telescopic Air Intake) |
72.25-95″ (1850-2400mm) |
|
Heater Weight |
147 lbs (67 kg) |
|
Shipping Weight with Stones |
345 lbs (157 kg) |
|
Display Panel |
|
|
Model |
AIRIQ WI-FI |
