Description
Description:

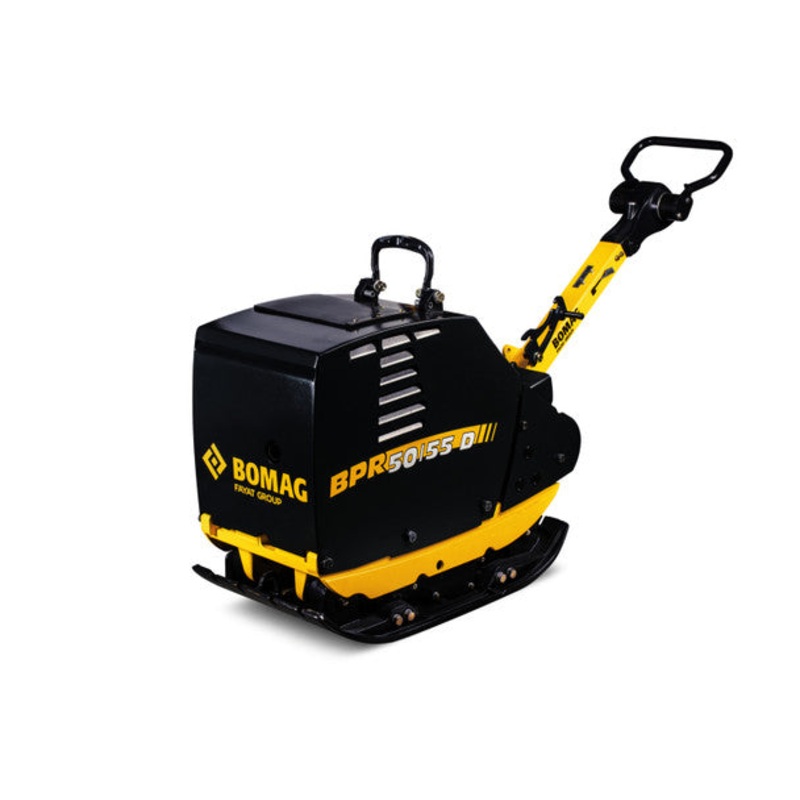

Reversible vibratory plates: Medium-weight powerhouses: BPR – performance class 45 to 60 kN. The 772 to 1,102 lbs operating weights of these diesel-operated vibratory plates from BOMAG provide excellent compaction results and superb surface coverage, especially on earthworks and paving work. Engine protection hood Comfortable control lever Low vibration steering rod Height adjustable steering rod Steering rod lockable in transport and working position Vibration and throttle regulation on the steering rod Highly wear-resistant, powder-coated base plate Automatic decompression Multi-functional, foldable single-point lifting facility Extension plates (550mm) Electric starter Recoil starter Back-up drive protection Warning signal at low oil level (BPR45/55D) 3-2-1 Warranty Hour meter
TECHNICAL CHARACTERISTICS
FREQUENCY
66 Hz
CENTRIFUGAL FORCE
60 kN
FUEL
Diesel
DRIVE TYPE
Mechanical
COOLING
Air
ENGINE TYPE
Combustion (diesel), single cylinder
ENGINE POWER
6.8 kW / 9.2 KM
PLATE WIDTH
550 mm
MAXIMUM GRADEABILITY
35 %
ENGINE MODEL & MANUFACTURER
Hatz 1B40
RPM
3000/min
ADVANCE TRAVEL
28 m/min
THE SMALLEST RIDE HEIGHT
790 mm
START
Electric
FUEL TANK CAPACITY
5 l
WEIGHT
400 kg
