Description
The Renogy 800W Solar Kit – general off grid series offers you varies of options to help you get the most suitable mobile electricity solution for your 3.5-4kWh daily power need. (Based on 5 hours of direct sunlight conditions).
These kits can build a reliable and environmentally friendly power supply, perfect for a yard, barn, RV, boat, or camper. It can also be installed in a ground mount system next to off-grid campsites, as a power supply for outdoor appliances and emergencies, or as a stand-alone power system for water pumps, greenhouses, or other remote structures and machinery.

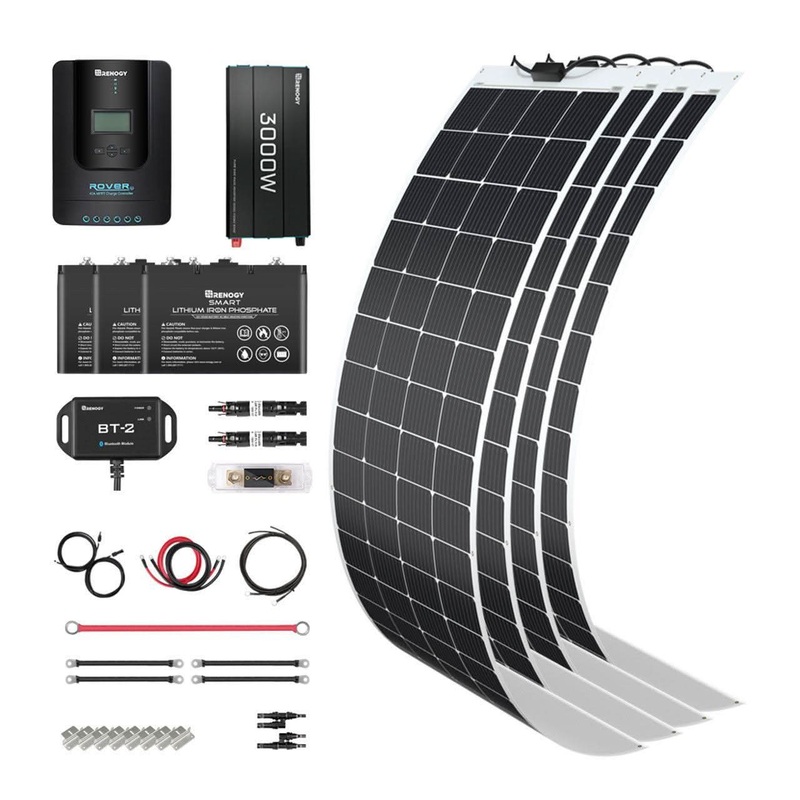

The Kits come with 4pcs of 200W classic rigid (or ultra flexible) solar panels, 1pcs of 60A MPPT charge controller from the classic Rover series or the innovative Rego series, no battery or 3pcs of 100Ah smart lithium battery with self heating feature (or the economical lithium battery with built-in Bluetooth), no inverter or 1pcs of 3000W pure sine wave inverter (or inverter charger), and all necessary accessories including cables, connectors, mounts and monitoring to connect the main components you have chosen.
Specifications
200W 12V RIGID SOLAR PANEL
Max Power at STC:200W
Open Circuit Voltage:23V
Short Circuit Current:11.05A
Optimum Operating Voltage:19.2 V
Optimum Operating Current:10.42 A
Operating Temperature:-40F~194F / -40~90
Maximum System Voltage:600 VDC UL
Maximum Series Fuse Rating:20A
Dimensions:58.7 x 27.5 x 1.38 in / 1491 x 699 x 35mm
Weight:26.46 lb (12 kg)
200W 12V FLEXIBLE SOLAR PANEL
Maximum Power at STC:200W
Open-Circuit Voltage (Voc):23.9V
Short Circuit Current:10.74A
Optimum Operating Current (Imp):10.02A
Maximum System Voltage:600V DC
Maximum Series Fuse Rating:15A
Operating Temperature:-40F to 176F (-40C to +80C)
Dimensions:1605 x 748 x 3 mm (63.2 x 29.4 x 0.1 in)
Weight:4.9 kg / 10.8 lbs
ROVER 60A MPPT W/ LCD & BT2 MODULE
Nominal Voltage:12V/24V/36V/48V Auto Recognition (for non-lithium batteries)
Rated Charge Current:60A
Rated Load Current:20A
Max. PV Input Power:800W/12V; 1600W/24V; 2400W/36V; 3200W/48V
Max. PV Input Voltage:150 VDC (25C), 140VDC (-25C)
Self-Consumption:0.7W-1.2W
Operating Temperature:-31 F to 113 F (-35 C to 45 C )
Dimensions:285 x 205 x 102mm (11.22 x 8.07 x 4.00in)
Weight:7.9lbs
REGO 60A MPPT BUILT-IN BLUETOOTH
Nominal System Voltage:12 V
Rated Charge Current:60A
Max. PV Input Power:800W
MPPT Voltage Range:15 – 100 VDC /12V
Solar Input Voltage Range (VOC):100 V
Max Input Current (short-circuit, Isc):50A
Power Limiting Protection:Up to 800W/12V
Operating Temperature Range:-20 – 60
Dimensions:9.43 x 7.36 x 4.28 inch / 239.4 x 187 x 108.8 mm
Weight:5.07 lbs/ 2.30kg
12V 100AH LIFEPO4 BATTERY W/ BULIT-IN BLUETOOTH
Battery Type:Lithium Iron Phosphate
Rated Capacity:100 Ah
Nominal Voltage:12.8 V
Voltage Range:10~14.8 V
Cycle Life(0.5C,25):80%DOD 2000 Cycles
Connection Method:Parallel(Up to 8)
Protection Rate:IP65
Charge Voltage:14.4V
Maximum Continuous Charging Current:50 A
Maximum Continuous Discharging Current:100 A
Standard Operation Temperature:255
Charge Temperature:32~131F/ 0~55C
Discharge Temperature:-4~140F/ -20~60C
Communication Port:Modbus
Built-in Bluetooth:Yes
Dimensions:12.99 x6.77 x 8.43 inch / 330 x 172 x 214mm
Weight:28.7 lbs. / 13.0 kg
12V 100AH SELF-HEATING LIFEPO4 BATTERY W/ BT2 MODULE
Battery Type:Lithium Iron Phosphate
Rated Capacity:100AH
Nominal Voltage:12.8 V
Cycle Life(0.2C,25):80%DOD 4000 Cycles
Connection Method:Parallel
Protection Rate:IP54
Charge Voltage:14.4V
Maximum Continuous Charging Current:50 A
Maximum Continuous Discharging Current:100 A
Automatically Self-heating Function:
