Description
Renogy Custom Kit is designed with your convenience in mind. Our comprehensive range of options ensures that you can create a solar power system that fits seamlessly into your lifestyle. Whether you’re looking to power your home, RV, boat, or off-grid cabin, our custom kits provide a solution that meets your power needs with ease.
We offer a wide range of options, allowing you to mix and match different solar panel sizes, controllers, batteries, and inverters. No more hunting for compatible components from multiple sources everything you need is conveniently packaged and ready to go.

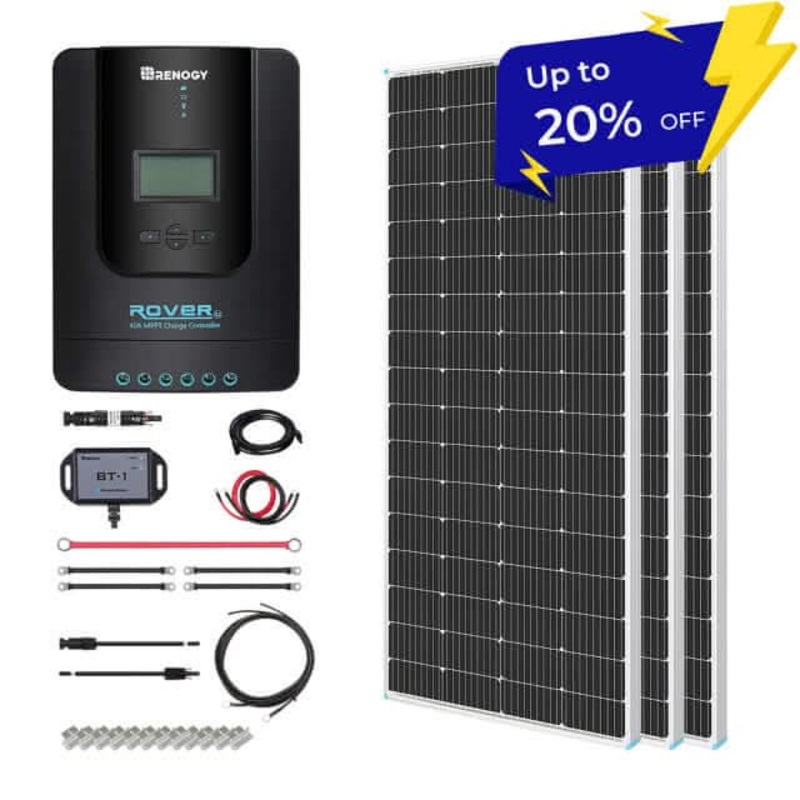

The Kits come with 3pcs of 200W classic rigid (or ultra flexible) solar panels or 2pcs of 320W classic rigid solar panels, 1pcs of 60A MPPT charge controller from the classic Rover series or the innovative Rego series , no battery or 3pcs of 100Ah smart lithium battery with self heating feature (or the economical lithium battery with built-in Bluetooth), no inverter or 1pcs of 3000W pure sine wave inverter (or inverter charger), and all necessary accessories including cables, connectors, mounts and monitoring to connect the main components you have chosen.
*Based on an average of peak sun hours around 5-6.
Specs
200W 12V RIGID SOLAR PANEL
Max Power at STC:200W
Open Circuit Voltage:23V
Short Circuit Current:11.05A
Optimum Operating Voltage:19.2 V
Optimum Operating Current:10.42 A
Operating Temperature:-40F~194F / -40~90
Maximum System Voltage:600 VDC UL
Maximum Series Fuse Rating:20A
Dimensions:58.7 x 27.5 x 1.38 in / 1491 x 699 x 35mm
Weight:26.46 lb (12 kg)
200W 12V FLEXIBLE SOLAR PANEL
Maximum Power at STC:200W
Open-Circuit Voltage (Voc):23.9V
Short Circuit Current:10.74A
Optimum Operating Current (Imp):10.02A
Maximum System Voltage:600V DC
Maximum Series Fuse Rating:15A
Operating Temperature:-40F to 176F (-40C to +80C)
Dimensions:1605 x 748 x 3 mm (63.2 x 29.4 x 0.1 in)
Weight:4.9 kg / 10.8 lbs
320W 24V RIGID SOLAR PANEL
Maximum Power at STC:320W
Optimum Operating Voltage (Vmp):33V
Certifications:CE, ISO, UL
Maximum System Voltage:1500V DC (UL)
Weight:39.7lbs
Dimensions:65.6 x 39.4 x 1.4 in
ROVER 60A MPPT W/ LCD & BT2 MODULE
Nominal Voltage:12V/24V/36V/48V Auto Recognition (for non-lithium batteries)
Rated Charge Current:60A
Rated Load Current:20A
Max. PV Input Power:800W/12V; 1600W/24V; 2400W/36V; 3200W/48V
Max. PV Input Voltage:150 VDC (25C), 140VDC (-25C)
Self-Consumption:0.7W-1.2W
Operating Temperature:-31 F to 113 F (-35 C to 45 C )
Dimensions:285 x 205 x 102mm (11.22 x 8.07 x 4.00in)
Weight:7.9lbs
REGO 60A MPPT BUILT-IN BLUETOOTH
Nominal System Voltage:12 V
Rated Charge Current:60A
Max. PV Input Power:800W
MPPT Voltage Range:15 – 100 VDC /12V
Solar Input Voltage Range (VOC):100 V
Max Input Current (short-circuit, Isc):50A
Power Limiting Protection:Up to 800W/12V
Operating Temperature Range:-20 – 60
Dimensions:9.43 x 7.36 x 4.28 inch / 239.4 x 187 x 108.8 mm
Weight:5.07 lbs/ 2.30kg
DCC50S 12V 50A DC-DC ON-BOARD BATTERY CHARGER WITH MPPT
System Voltage:12VDC
Maximum Charging Current:50A
Battery Types:SLD, GEL, FLD, LI,USER
Service Battery Charging Mode:MPPT
Max. Solar Input Voltage:25V
Max. Solar Input Power:660W @ 50A
Operating Temperature Range:-31F – 149F
Dimensions:9.6*5.7*3.0in
Weight:3.13Ibs
Communication Protocol:RS485
12V 100AH LIFEPO4 BATTERY W/ BULIT-IN BLUETOOTH
Battery Type:Lithium Iron Phosphate
Rated Capacity:100 Ah
Nominal Voltage:12.8 V
Voltage Range:10~14.8 V
Cycle Life(0.5C,25):80%DOD 2000 Cycles
Connection Method:Parallel(Up to 8)
Protection Rate:IP65
Charge Voltage:14.4V
Maximum Continuous Charging Current:50 A
Maximum Continuous Discharging Current:100 A
Standard Operation Temperature:255
Charge Temperature:32~131F/ 0~55C
Discharge Temperature:-4~140F/ -20~60C
Communication Port:Modbus
Built-in Bluetooth:Yes
Dimensions:12.99 x6.77 x 8.43 inch / 330 x 172 x 214mm
Weight:28.7 lbs. / 13.0 kg
12V 100AH SELF-HEATING LIFEPO4 BATTERY W/ BT2 MODULE
Battery Type:Lithium Iron Phosphate
Rated Capacity:100AH
Nominal Voltage:12.8 V
Cycle Life(0.2C,25):80%DOD 4000 Cycles
Connection Method:Parallel
Protection Rate:IP54
Charge Voltage:14.4V
Maximum Continuous Charging Current:50 A
Maximum Continuous Discharging Current:100 A
Automatically Self-heating Function:Temperature <415
Standard Operation Temperature:255
Storage Temperature:-13~149 / -25~65
Communication Port:RJ45 (RS485 Protocol)
Built-in Bluetooth:No
Dimensions:11.4 x 6.8 x 7.4 inch / 289 x 172 x 187.5 mm
Weight:26 lbs. / 11.8 kg
3000W 12V PURE SINE WAVE INVERTER
Continuous Output Power:3000W
Peak Power Rating:6000W
Output Voltage:120V
Output Frequency:60 Hz 0.1%
AC Output Sockets:3
AC Terminal Block:1
USB Power Port:5V/2.1A
Power Output Control:AC On/Off Switch, and Remote Control
Output Waveform:Pure Sine Wave
Nominal Efficiency:> 90%
Operating Temperature Range:-4F – 104F
Cooling Fan:Thermally controlled
Dimensions:18.9 x 9.0 x 4.0 in
Weight:12.5 lb
3000W 12V PURE SINE WAVE INVERTER CHARGER
Continuous Power:3000W
AC Output Voltage Range:100~120VAC configurable, 5V interval
DC Input Voltage Range:10~16 VDC
Nominal Efficiency:> 90% Peak
Output Waveform:Pure Sine Wave
Output Frequency :50/60 Hz
Input Voltage Range:90-138 VAC
Input Wave Form:Sine Wave (Utility or Generator)
Operating Temperature:0 ~ 40C / 32 ~ 104F
Storage Temperature:-30 ~ 70C / -22 ~ 158F
Battery Types:GEL, AGM, SLA, FLD, CAL, LI, USER
Dimensions:20.1 x 11.2 x 7.6 in / 510 x 285 x 193 mm
Weight:63.5 lbs / 28.8 Kg
