Description

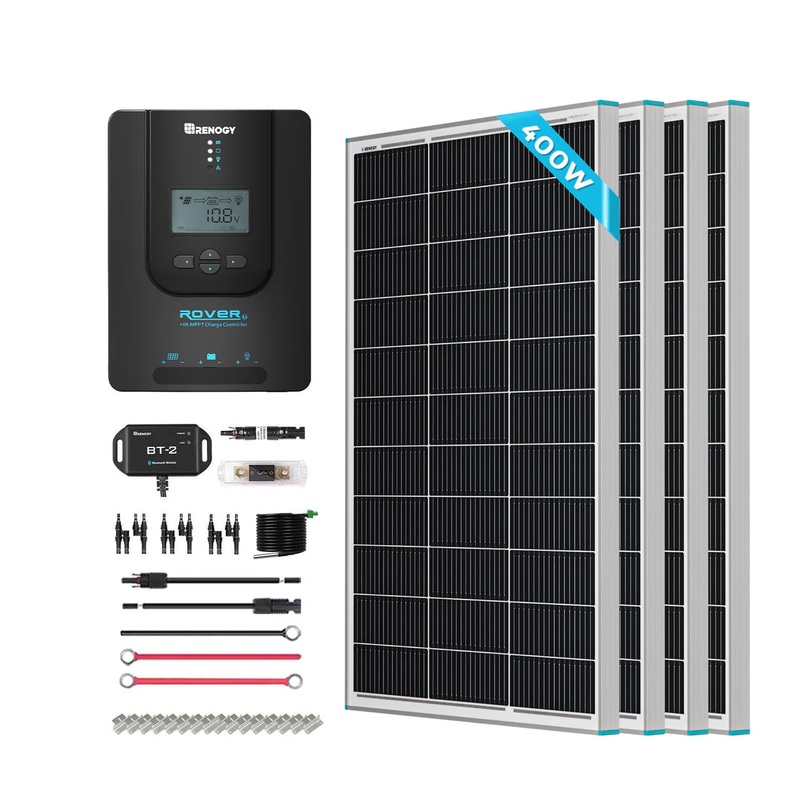

Introducing Renogy Custom Kit – Your All-In-One Solar Solution
At Renogy, we understand that your energy needs are unique, and that’s why we’ve designed the Renogy Custom Kit with your convenience in mind. With a comprehensive range of options, you can effortlessly create a solar power system that seamlessly fits your lifestyle, whether it’s for your home, RV, boat, or an off-grid cabin.
Gone are the days of searching for compatible components from different sources. Our custom kits are thoughtfully packaged and ready to go, ensuring a hassle-free setup process.
Package Contents:
Solar Panels:
- Choose from 4pcs of 100W or 2pcs of 200W classic rigid solar panels, or 2pcs of 200W ultra-flexible solar panels.
Charge Controller:
- Select from our high-quality options, including the classic Rover series with a 40A MPPT charge controller and an LCD & BT1 module, or the more economical Adventurer Li with a 30A PWM charge controller and LCD & BT1 module.
Battery:
- Decide between the powerful 12V 100Ah LiFePO4 battery with built-in Bluetooth for smart monitoring or the self-heating variant with BT2 module for extreme weather conditions.
Inverter:
- Opt for the 2000W 12V pure sine wave inverter to efficiently convert your solar energy into usable power or choose the 2000W 12V pure sine wave inverter charger for added functionality.
Accessories:
- Each kit comes complete with all necessary accessories, including cables, connectors, mounts, and monitoring tools to connect the main components seamlessly.
Designed for Optimal Performance:
- Our kits are based on an average of peak sun hours around 5-6, ensuring reliable power generation throughout the day.
Package Options:
- Basic Accessory Set:
- Solar Panel Mounting Z Brackets (Set of 4)
- Solar Y Branch Connectors MMF+FFM Pair
- Solar Panel to Charge Controller Adaptor Kit
- Battery to Charge Controller Tray Cables
- Premium Accessory Set:
- Solar Panel Mounting Z Brackets (Set of 4)
- Solar Y Branch Connectors MMF+FFM Pair
- Solar Panel to Charge Controller Adaptor Kit
- Battery to Charge Controller Tray Cables
- BT-1 Bluetooth Module (New Version)
- Holders with Fuse
- 60A ANL Fuse Set with Fuse
- Terminals for 3/8 in Lugs
With Renogy Custom Kit, the power is in your hands. Design a solar system tailored to your needs, and embrace the freedom of sustainable energy wherever you go.
Specifications
100W 12V RIGID SOLAR PANEL
Max Power at STC:100W
Open Circuit Voltage:24.3V
Short Circuit Current:5.21A
Optimum Operating Voltage:20.4V
Optimum Operating Current:4.91A
Operating Temperature:-40F to 176F
Maximum System Voltage:600V DC (UL)
Maximum Series Fuse Rating:15A
Dimensions:41.8 x 20.9 x1.38 in
Weight:14.1lbs/6.4kg
200W 12V RIGID SOLAR PANEL
Max Power at STC:200W
Open Circuit Voltage:23V
Short Circuit Current:11.05A
Optimum Operating Voltage:19.2 V
Optimum Operating Current:10.42 A
Operating Temperature:-40F~194F / -40~90
Maximum System Voltage:600 VDC UL
Maximum Series Fuse Rating:20A
Dimensions:58.7 x 27.5 x 1.38 in / 1491 x 699 x 35mm
Weight:26.46 lb (12 kg)
200W 12V FLEXIBLE SOLAR PANEL
Maximum Power at STC:200W
Open-Circuit Voltage (Voc):23.9V
Short Circuit Current:10.74A
Optimum Operating Current (Imp):10.02A
Maximum System Voltage:600V DC
Maximum Series Fuse Rating:15A
Operating Temperature:-40F to 176F (-40C to +80C)
Dimensions:1605 x 748 x 3 mm (63.2 x 29.4 x 0.1 in)
Weight:4.9 kg / 10.8 lbs
ROVER 40A MPPT W/ LCD & BT1 MODULE
Nominal Voltage:12/24V Auto-Detect
Rated Charge Current:40A
Max. PV Input Power:12V/520W, 24V/1040W
Max. PV Input Voltage:95 VDC
Operating Temperature:-4F to 185F (‘-20~85)
Dimensions:2.65 X 1.38 X 0.55 in (67.3 X 35 X 14 mm)
Weight:4.58oz (130g )
WANDERER LI 30A PWM W/ LCD & BT1 MODULE
Nominal System Voltage:12 VDC
Rated Charge Current:30A
Max. PV Input Power:25 VDC
High Voltage Disconnect:16V
Operating Temperature Range:-31F – 176F
Dimensions:6.45 x 4.31 x 1.76 inches
Weight:0.65 lbs
ADVENTURER LI- 30A PWM W/ LCD & BT1 MODULE
Nominal Voltage:12 VDC/ 24 VDC
Rated Charge Current:30A
Max. PV Input Voltage:50 VDC
Max. PV Input Power:12V(400W) / 24V(800W)
Storage Temperature:-31F to 176F
Dimensions:6.56 x 4.50 x 1.90 inches
Weight:0.6 lbs
12V 100AH LIFEPO4 BATTERY W/ BULIT-IN BLUETOOTH
Battery Type:Lithium Iron Phosphate
Rated Capacity:100 Ah
Nominal Voltage:12.8 V
Voltage Range:10~14.8 V
Cycle Life(0.5C,25):80%DOD 2000 Cycles
Connection Method:Parallel(Up to 8)
Protection Rate:IP65
Charge Voltage:14.4V
Maximum Continuous Charging Current:50 A
Maximum Continuous Discharging Current:100 A
Standard Operation Temperature:255
Charge Temperature:32~131F/ 0~55C
Discharge Temperature:-4~140F/ -20~60C
Communication Port:Modbus
Built-in Bluetooth:Yes
Dimensions:12.99 x6.77 x 8.43 inch / 330 x 172 x 214mm
Weight:28.7 lbs. / 13.0 kg
12V 100AH SELF-HEATING LIFEPO4 BATTERY W/ BT2 MODULE
Battery Type:Lithium Iron Phosphate
Rated Capacity:100AH
Nominal Voltage:12.8 V
Cycle Life(0.2C,25):80%DOD 4000 Cycles
Connection Method:Parallel
Protection Rate:IP54
Charge Voltage:14.4V
Maximum Continuous Charging Current:50 A
Maximum Continuous Discharging Current:100 A
Automatically Self-heating Function:Temperature <415
Standard Operation Temperature:255
Storage Temperature:-13~149 / -25~65
Communication Port:RJ45 (RS485 Protocol)
Built-in Bluetooth:No
