Description
SPECIFICATIONS
|
Shop Tools |
|
|
Grinder Voltage |
120.0 |
|
Grinder Wheel Size |
5-3/4″ |
|
Grinder Maximum Pitch Size |
3/4″ |
|
Grinder Amps |
4.3 |
|
Grinder Watts |
300.0 |
|
Grinder Horsepower |
0.4 |
|
Grinder Phase |
Single |
|
Grinder Hertz |
60.0 |
|
Grinder RPM |
3400.0 |
PRODUCT FEATURES

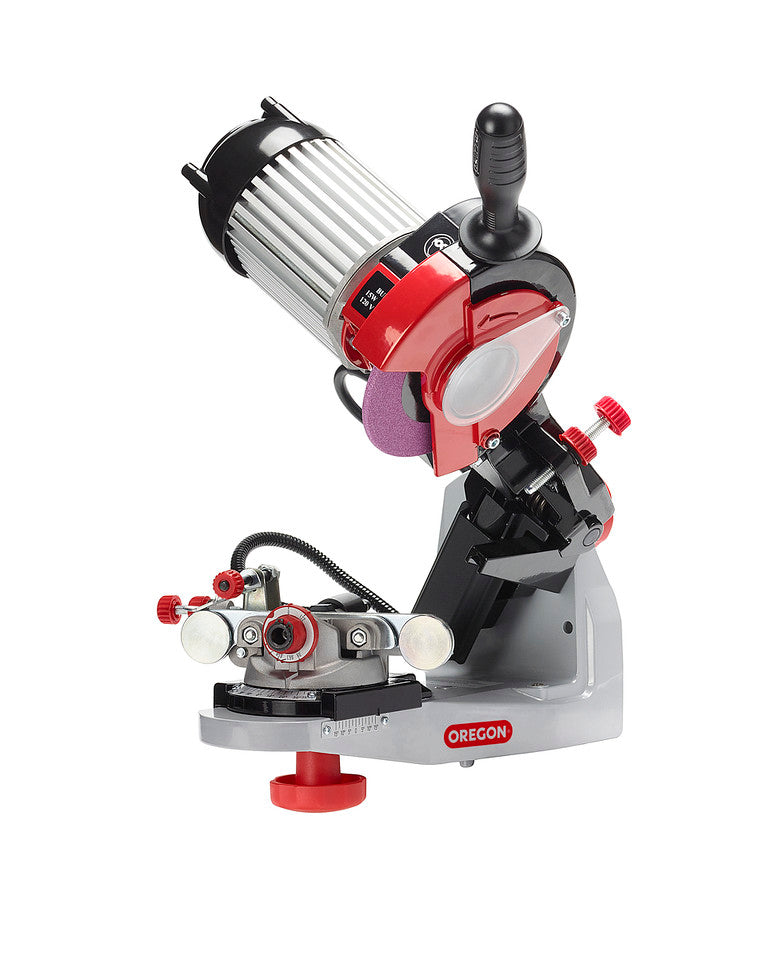

Providing the convenience and quality you need from a workhorse, the 620-series high-volume saw chain grinder features a hydraulic assist clamping vise, eliminating the need to manually tighten and loosen the vise.
PRODUCT DETAILS
- Includes: Grinder, a dressing brick and profile guide, operator instructions plus two grinding wheels (3.2mm & 4.7mm) and a 6.0mm flat profile disc for depth gauge maintenance
- Delivers powerful (or maximum) performance on all chain pitches.
- Hydraulic assist for hands-free automatic vise clamping
- Wide clamping area abd clear markings for easy adustments.
- All chain type vise capacity. Grinds all chains up to 3/4″ out of the box.
- Includes three grinding wheels for sharpening 1/4″, 3/8″ Low Profile, .325″, .325, 3/8″, .404″ and 3/4″ pitch chain, a dressing brick and a quick template.
- Single phase, direct-drive, one-way, 120V, 60Hz, 4.3A, 300W, 3400 RPM, 0.4 HP motor.
- 21 lbs. weight and 19-1/2″ height.
