Description

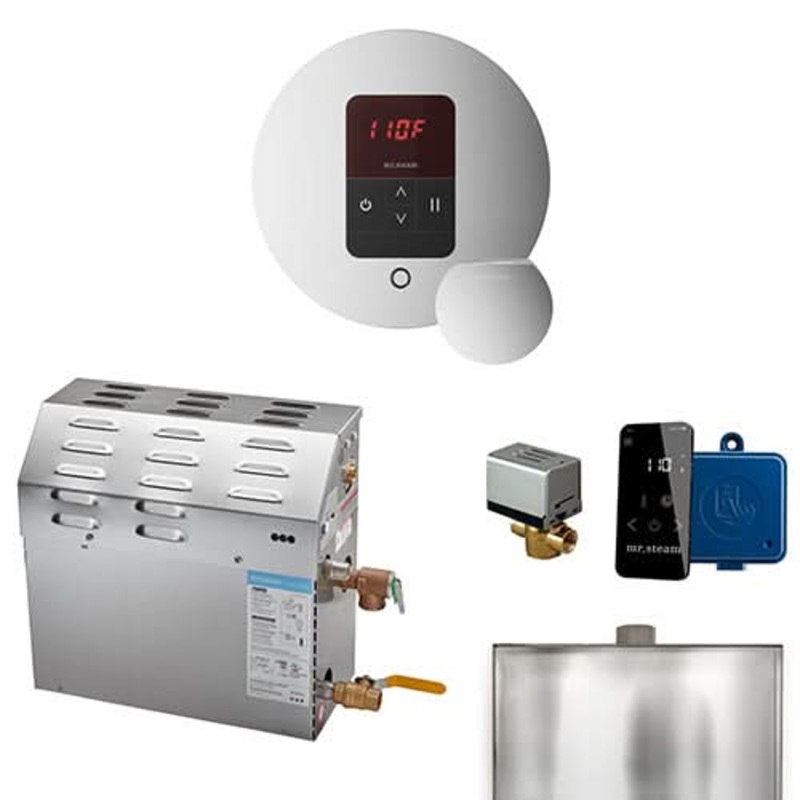

This all-in-one, ready to install Mr.Steam MS iTempo Steam Shower Generator Package Accs gives you everything you need to create your own fully functional steam shower system at home. This collection comes complete with an MS Steam Generator, iTempo Control, Aroma Designer Finish SteamHead, SteamLinx Module and Mobile App, AutoFlush System, and Condensation Pan. One selection and youre ready to bring serenity and wellness into your home.
Features
MS Steam Generator
- Quiet and efficient
- 240V/1PH operation
- For small sized rooms
- Advanced microprocessor operating system
- Corrosion-resistant stainless steel tank
- Industrial-grade heating elements
- LED light indicators for troubleshooting
- Durable electronic components
- Low voltage safety control circuits
- Compact size to fit in small areas
- Optional Express Steam starts steam quick and maintains water temperature
- Dimensions: 14.5″W (37 cm) 6.8″D (17 cm) x 14.8″H (38 cm)
- Limited lifetime warranty
iTempo Control
- Comes with a matching Aroma Designer Finish SteamHead
- Works with the SteamLinx Module and Mobile App
- Display lets you program the temperature and get comfortable
- Easily mount and install your control snug to the wall
- Dimensions: 5“Diamater (13 cm) x 0.3″D (1 cm) and 4.5″W (11 cm) x 0.3″D (1 cm) x 5″H (13 cm)
- Limited 2-year warranty
Aroma Designer Finish SteamHead
- Classic design
- Even distribution of steam
- Remains cool to the touch
- Has an oil reservoir at the top for essential oils
- No assembly of moving parts required
- Dimensions:3″Diamater (8 cm) x 0.9″D (2 cm) and 3″W (8 cm) x 0.9″D (2 cm) x 2.8″H (7 cm)
- Limited 2-year warranty
SteamLinx Module and Mobile App
- Allows you to startyour steam shower from anywhere
- Operates on/off, time, and temperature using a smartphone or mobile device
- Works with Just Ask Alexa when skill is enabled
- Dimensions:2.8″W (7 cm) x 0.9″D (2 cm) x 3.4″H (9 cm)
- Limited 2-year warranty
AutoFlush System
- Automatic self-cleaning system that promotes a long and healthy life for steam generators
- Flushes old water and impurities after every steam shower
- Quietly flushes through a 1/2″ electronically-activated valve
- Simple plug and play installation
- Dimensions: 3.3″W (8 cm) x 2.5″D (6 cm) x 4.3″H (11 cm)
- Limited 2-year warranty
Condensation Pan
- Protects against potential water leaks
- Will trap and redirect the water to a predetermined area
- Goes on a solid level surface beneath the steam generator
- Built-in brackets raise the steam generator above the bottom of the pan
- Dimensions: 25″W (64 cm) x 9″D (23 cm) x 1.5″H (4 cm)
- Limited 2-year warranty
Include
MS Steam Generator
- Steam Generator
- Installation and Operation Manual
- Lifetime Limited Warranty
iTempo Control
- Control
- 30 ft Control Cable
- Tube of Silicone Sealant
- 2-Year Limited Warranty
Aroma Designer Finish SteamHead
- SteamHead
- 2-Year Limited Warranty
SteamLinx Module and Mobile App
- SteamLinx A with Integral Cable
- SteamLinx B with Ethernet Cable
- Power Cable and Supply
- 2-Year Limited Warranty
AutoFlush System
- AutoFlush Valve with Cord
- 2-Year Limited Warranty
Condensation Pan
- Condensation Pan
- 2-Year Limited Warranty
Specifications
|
Model |
MS ITEMPO PKG ACCS |
|
Model |
MS-R |
|
Construction Material |
Stainless Steel |
|
Installation Type |
Hardwired |
|
Room Size |
0-257 cu. ft. |
|
Kilowatt Rating |
5-9kW |
|
Voltage |
240 |
|
Phase |
1 |
|
Drain Connection |
1/2″ NPT |
|
SteamHead Connection |
3/4″ NPT |
|
Water Supply Connection |
3/8″ NPT |
|
Width |
14.5″ (37 cm) |
|
Depth |
6.8″ (17 cm) |
|
Height |
14.8″ (38 cm) |
|
Weight |
25 lbs (11 kg) |
|
Model |
ITEMPO |
|
Construction Material |
Plastic, Metal, Electronics |
|
Installation Type |
Hardwired |
|
Display |
Digital Characters |
|
Interface |
Push Buttons |
|
Diameter (RD) |
5″ (13 cm) |
|
Depth (RD) |
0.3″ (1 cm) |
|
Width (SQ) |
4.5″ (11 cm) |
|
Depth (SQ) |
0.3″ (1 cm) |
|
Height (SQ) |
5″ (13 cm) |
|
Weight |
5 lbs (2 kg) |
|
Model |
STEAMHEAD 104515 (RD) / 104516 (SQ) |
|
Construction Material |
Brass |
|
SteamHead Connection |
3/4″ NPT |
|
Diameter (RD) |
3″ (8 cm) |
|
Depth (RD) |
0.9″ (2 cm) |
|
Width (SQ) |
3″ (8 cm) |
|
Depth (SQ) |
0.9″ (2 cm) |
|
Height (SQ) |
2.8″H (7 cm) |
|
Weight |
0.7 lbs (1 kg) |
|
Model |
STEAMLINX |
|
Construction Material |
Plastic, Metal, Electronics |
|
Installation Type |
Hardwired |
|
Width |
2.8″ (7 cm) |
|
Depth |
0.9″ (2 cm) |
|
Height |
3.4″ (9 cm) |
|
Weight |
2 lbs (1 kg) |
|
Model |
AUTOFLUSH MS81500E |
|
Construction Material |
Aluminum and Brass |
|
Drain Valve |
1/2″ NPT |
|
Width |
3.3″ (8 cm) |
|
Depth |
2.5″ (6 cm) |
|
Height |
4.3″ (11 cm) |
|
Weight |
2.3 lbs (1 kg) |
|
Model |
CONDENSATION PAN 103867 |
|
Construction Material |
Stainless Steel |
|
Drain Fitting |
3/4″ NPT |
|
Width |
25″ (64 cm) |
|
Depth |
9″ (23 cm) |
