Description

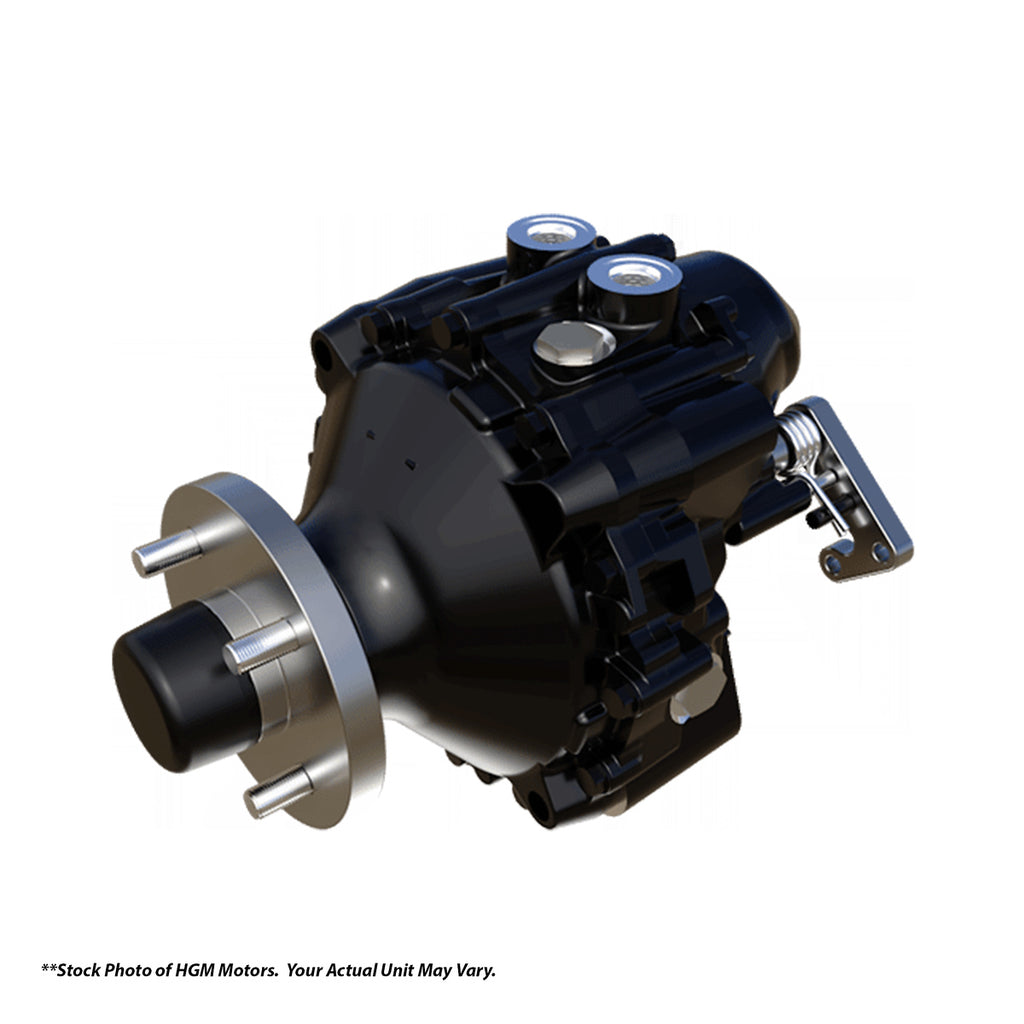

HGM™ MOTORS
HGM MOTORS PROVIDE SUPERIOR PERFORMANCE & SEAMLESS POWER.
When you need to handle heavier loads smoothly and quietly, trust Hydro-Gear’s HGM fixed-displacement, axial piston motors to get the job done. The large bearing capacity and multiple pistons are great for constant and continuous torque to the motor shaft, making it a smooth performer even at low speeds. Take it as slow as you need to – because these HGM motors won’t cog. They also feature a dependable internal wet disc brake. Industry-standard 4 or 5 bolt mounting options are available – and the serviceable design means they’re made for long work life.
- Dependable internal wet disc brake
- Industry-standard 4 or 5 bolt mounting options
- Outstanding low-speed performance
- Lowest speed capability without cogging
SPECIFICATIONS
GEOMETRIC DISPLACEMENT
- HGM-H – 14.93 in3 [244.7 cc/rev]
- HGM-H – 17.84 in3 [292.3 cc/rev]
- HGM-L – 17.84 in3 [292.3cc/rev]
MAXIMUM SPEED
- CONTINUOUS
- HGM-H – 210 rpm
- HGM-H – 185 rpm
- HGM-L – 185 rpm
- INTERMITTENT
- HGM-H – 250 rpm
- HGM-H – 210 rpm
- HGM-L – 210 rpm
MAXIMUM TORQUE
- CONTINUOUS
- HGM-H – 2700 in-lbf [305 Nm]
- HGM-H – 3200 in-lbf [362 Nm]
- HGM-L – 3500 in-lbf [395 Nm]
- INTERMITTENT
- HGM-H – 4800 in-lbf [542 Nm]
- HGM-H – 5600 in-lbf [633 Nm]
- HGM-L – 6200 in-lbf [700 Nm]
- PEAK
- HGM-H – 6600 in-lbf [746 Nm]
- HGM-H – 7900 in-lbf [892 Nm]
- HGM-L – 8600 in-lbf [972 Nm]
