Description
Product Highlights

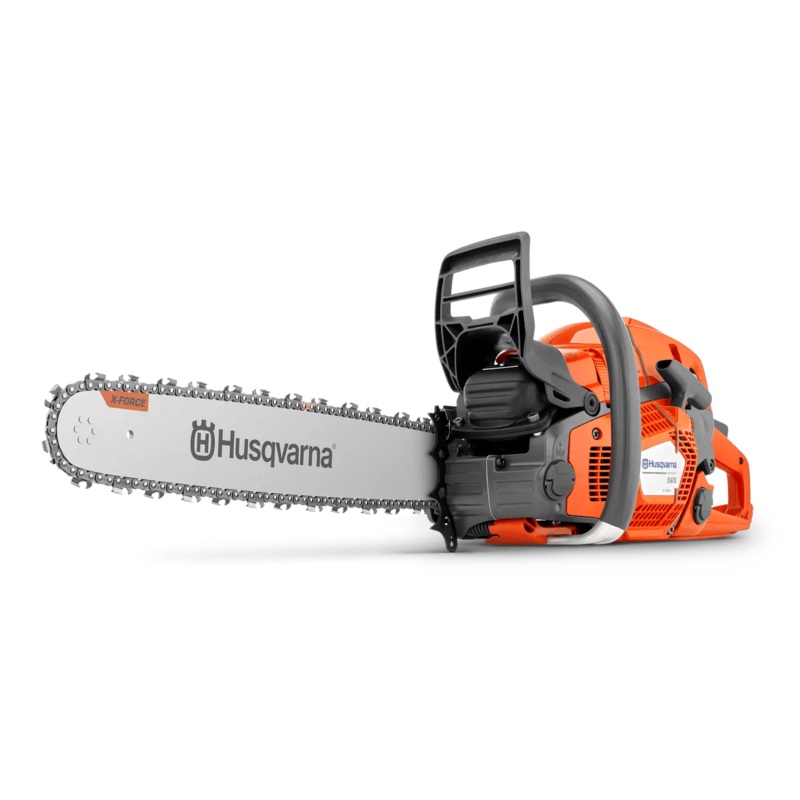

Professional 71cc chainsaw for demanding heavy-duty forestry work
Promising next-generation cutting performance, the Husqvarna 565 lets you work faster and more efficiently with longer guide bars. Excellent cooling capacity and state-of-the art filtration empower you to tackle the most demanding tasks. Equipped with revamped AutoTune and Air Injection and offering low vibrations, the 565 is a powerful yet ergonomically designed chainsaw for fast, safe work.
Specifications
| Engine |
20″ RSN 3/8″ 1,3 mm C83
SKU: 966733906 |
20″ RSN 3/8″ 1,5 mm C85
SKU: 966733907 |
24″ RSN 3/8″ 1,3 mm C83
SKU: 966733908 |
24″ RSN 3/8″ 1,5 mm C85
SKU: 966733909 |
28″ RSN 3/8″ 1,3 mm C83
SKU: 966733910 |
28″ RSN 3/8″ 1,5 mm C85
SKU: 966733911 |
| Chain speed at max power |
67.9 fts |
67.9 fts |
67.9 fts |
67.9 fts |
67.9 fts |
67.9 fts |
| Cylinder displacement |
70.6 cm |
70.6 cm |
70.6 cm |
70.6 cm |
70.6 cm |
70.6 cm |
| Output shaft power1 |
5 hp |
5 hp |
5 hp |
5 hp |
5 hp |
5 hp |
| Torque, max. |
4.2 Nm |
4.2 Nm |
4.2 Nm |
4.2 Nm |
4.2 Nm |
4.2 Nm |
| Torque, max. at rpm |
6,900 rpm |
6,900 rpm |
6,900 rpm |
6,900 rpm |
6,900 rpm |
6,900 rpm |
| Clutch engagement speed (120) |
3,800 rpm |
3,800 rpm |
3,800 rpm |
3,800 rpm |
3,800 rpm |
3,800 rpm |
| Electrode gap |
0.02 in |
0.02 in |
0.02 in |
0.02 in |
0.02 in |
0.02 in |
| Idling speed |
2,700 rpm |
2,700 rpm |
2,700 rpm |
2,700 rpm |
2,700 rpm |
2,700 rpm |
| Ignition module air gap |
0.01 in |
0.01 in |
0.01 in |
0.01 in |
0.01 in |
0.01 in |
| Maximum power speed |
9,300 rpm |
9,300 rpm |
9,300 rpm |
9,300 rpm |
9,300 rpm |
9,300 rpm |
| Oil pump type |
Adjustable flow, no flow at idle |
Adjustable flow, no flow at idle |
Adjustable flow, no flow at idle |
Adjustable flow, no flow at idle |
Adjustable flow, no flow at idle |
Adjustable flow, no flow at idle |
| Spark Plug |
NGK BPMR7A |
NGK BPMR7A |
NGK BPMR7A |
NGK BPMR7A |
NGK BPMR7A |
NGK BPMR7A |
| Equipment |
|
|
|
|
|
|
| Recommended bar length, min |
15 in |
15 in |
15 in |
15 in |
15 in |
15 in |
| Pitch |
3/8″ |
3/8″ |
3/8″ |
3/8″ |
3/8″ |
3/8″ |
| Recommended bar length, max |
28 in |
28 in |
28 in |
28 in |
28 in |
28 in |
| Chain type |
C83 |
C85 |
C83 |
C85 |
C83 |
C85 |
| Bar length |
50 cm |
50 cm |
60 cm |
60 cm |
70 cm |
70 cm |
| Bar length (inch) |
20 in |
20 in |
24 in |
24 in |
28 in |
28 in |
| Sprocket type |
Rim 7 |
Rim 7 |
Rim 7 |
Rim 7 |
Rim 7 |
Rim 7 |
| Gauge |
.050″ |
.058″ |
.050″ |
.058″ |
.050″ |
.058″ |
| Dimensions |
|
|
|
|
|
|
| Weight (excl. cutting equipment) |
14.3 lbs |
14.3 lbs |
14.3 lbs |
14.3 lbs |
14.3 lbs |
14.3 lbs |
| Sound and noise |
|
|
|
|
|
|
| Sound pressure level at operators ear |
105 dB(A) |
105 dB(A) |
105 dB(A) |
105 dB(A) |
105 dB(A) |
105 dB(A) |
| Sound power level, guaranteed (LWA) |
119 dB(A) |
119 dB(A) |
119 dB(A) |
119 dB(A) |
119 dB(A) |
119 dB(A) |
| Sound power level, measured |
117 dB(A) |
117 dB(A) |
117 dB(A) |
117 dB(A) |
117 dB(A) |
117 dB(A) |
| Vibration |
|
|
|
|
|
|
| Equivalent vibration level (ahv, eq) rear handle |
5.3 m/s |
5.3 m/s |
5.3 m/s |
5.3 m/s |
5.3 m/s |
5.3 m/s |
| Equivalent vibration level (ahv, eq) front handle |
5.2 m/s |
5.2 m/s |
5.2 m/s |
5.2 m/s |
5.2 m/s |
5.2 m/s |
| Lubricant |
|
|
|
|
|
|
| Oil tank volume |
0.7 US pint |
0.7 US pint |
0.7 US pint |
0.7 US pint |
0.7 US pint |
0.7 US pint |
| Lubricant type (Engine) |
Husqvarna 2 stroke or equiv. at 50:1 |
Husqvarna 2 stroke or equiv. at 50:1 |
Husqvarna 2 stroke or equiv. at 50:1 |
Husqvarna 2 stroke or equiv. at 50:1 |
Husqvarna 2 stroke or equiv. at 50:1 |
Husqvarna 2 stroke or equiv. at 50:1 |
| Emission |
|
|
|
|
|
|
| Exhaust emissions (CO EU V)2 |
804 g/kWh |
804 g/kWh |
804 g/kWh |
804 g/kWh |
804 g/kWh |
804 g/kWh |
