Description
Product Highlights

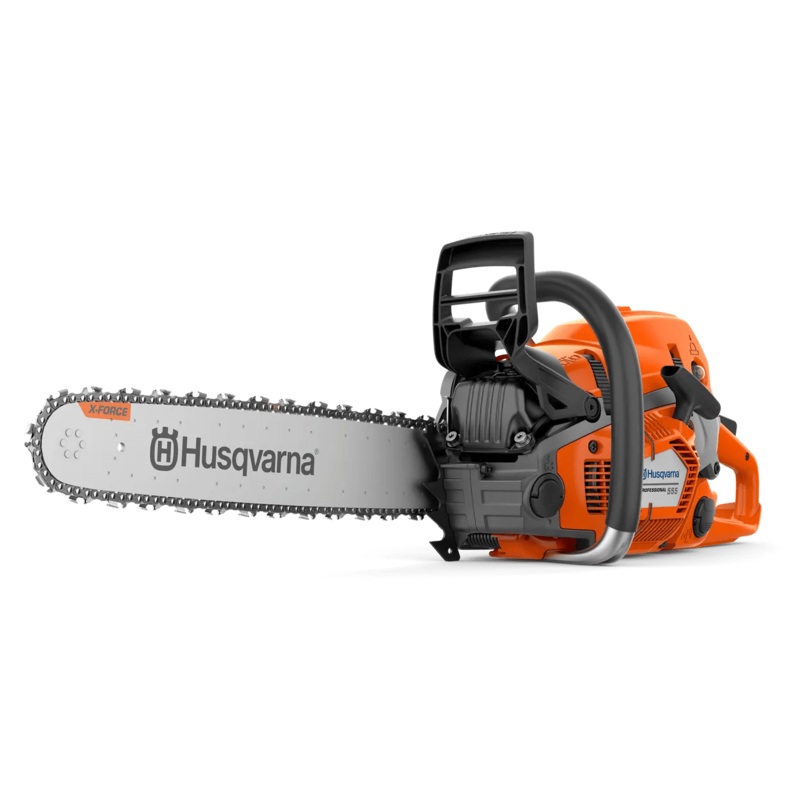

Professional 60cc chainsaw for demanding all-round forestry work
Husqvarna 555 is developed for demanding work by contractors and land owners. The saw has a ground breaking design and is loaded with raw power for efficient operation. Our unique X-Torq engine technology provides more power where you need it, up to 20% less fuel consumption and 60% less exhaust emission.
Specifications
| Engine |
18″ RSN 3/8″ 1,3 mm C83
SKU: 970501404 |
18″ RSN 3/8″ 1,5 mm C85
SKU: 970501405 |
20″ RSN 3/8″ 1,3 mm C83
SKU: 970501406 |
20″ RSN 3/8″ 1,5 mm C85
SKU: 970501407 |
24″ RSN 3/8″ 1,3 mm C83
SKU: 970501408 |
24″ RSN 3/8″ 1,5 mm C85
SKU: 970501409 |
| Chain speed at max power |
69.9 fts |
69.9 fts |
69.9 fts |
69.9 fts |
69.9 fts |
69.9 fts |
| Cylinder displacement |
59.8 cm |
59.8 cm |
59.8 cm |
59.8 cm |
59.8 cm |
59.8 cm |
| Output shaft power1 |
4.16 hp |
4.16 hp |
4.16 hp |
4.16 hp |
4.16 hp |
4.16 hp |
| Torque, max. |
3.51 Nm |
3.51 Nm |
3.51 Nm |
3.51 Nm |
3.51 Nm |
3.51 Nm |
| Torque, max. at rpm |
6,100 rpm |
6,100 rpm |
6,100 rpm |
6,100 rpm |
6,100 rpm |
6,100 rpm |
| Clutch engagement speed (120) |
4,300 rpm |
4,300 rpm |
4,300 rpm |
4,300 rpm |
4,300 rpm |
4,300 rpm |
| Electrode gap |
0.02 in |
0.02 in |
0.02 in |
0.02 in |
0.02 in |
0.02 in |
| Idling speed |
2,800 rpm |
2,800 rpm |
2,800 rpm |
2,800 rpm |
2,800 rpm |
2,800 rpm |
| Ignition module air gap |
0.01 in |
0.01 in |
0.01 in |
0.01 in |
0.01 in |
0.01 in |
| Maximum power speed |
9,600 rpm |
9,600 rpm |
9,600 rpm |
9,600 rpm |
9,600 rpm |
9,600 rpm |
| Oil pump type |
Adjustable flow |
Adjustable flow |
Adjustable flow |
Adjustable flow |
Adjustable flow |
Adjustable flow |
| Spark Plug |
NGK CMR6H |
NGK CMR6H |
NGK CMR6H |
NGK CMR6H |
NGK CMR6H |
NGK CMR6H |
| Equipment |
|
|
|
|
|
|
| Recommended bar length, min |
13 in |
13 in |
13 in |
13 in |
13 in |
13 in |
| Pitch |
3/8″ |
3/8″ |
3/8″ |
3/8″ |
3/8″ |
3/8″ |
| Recommended bar length, max |
24 in |
24 in |
24 in |
24 in |
24 in |
24 in |
| Chain type |
C83 |
C85 |
C83 |
C85 |
C83 |
C85 |
| Bar length |
45 cm |
45 cm |
50 cm |
50 cm |
60 cm |
60 cm |
| Bar length (inch) |
18 in |
18 in |
20 in |
20 in |
24 in |
24 in |
| Gauge |
|
.058″ |
|
.058″ |
|
.058″ |
| Dimensions |
|
|
|
|
|
|
| Weight (excl. cutting equipment) |
13.01 lbs |
13.01 lbs |
13.01 lbs |
13.01 lbs |
13.01 lbs |
13.01 lbs |
| Sound and noise |
|
|
|
|
|
|
| Sound pressure level at operators ear |
106 dB(A) |
106 dB(A) |
106 dB(A) |
106 dB(A) |
106 dB(A) |
106 dB(A) |
| Sound power level, guaranteed (LWA) |
118 dB(A) |
118 dB(A) |
118 dB(A) |
118 dB(A) |
118 dB(A) |
118 dB(A) |
| Sound power level, measured |
116 dB(A) |
116 dB(A) |
116 dB(A) |
116 dB(A) |
116 dB(A) |
116 dB(A) |
| Vibration |
|
|
|
|
|
|
| Equivalent vibration level (ahv, eq) rear handle |
5 m/s |
5 m/s |
5 m/s |
5 m/s |
5 m/s |
5 m/s |
| Equivalent vibration level (ahv, eq) front handle |
3.2 m/s |
3.2 m/s |
3.2 m/s |
3.2 m/s |
3.2 m/s |
3.2 m/s |
| Lubricant |
|
|
|
|
|
|
| Oil tank volume |
0.7 US pint |
0.7 US pint |
0.7 US pint |
0.7 US pint |
0.7 US pint |
0.7 US pint |
| Lubricant type (Engine) |
Husqvarna 2 stroke or equiv. at 50:1 |
Husqvarna 2 stroke or equiv. at 50:1 |
Husqvarna 2 stroke or equiv. at 50:1 |
Husqvarna 2 stroke or equiv. at 50:1 |
Husqvarna 2 stroke or equiv. at 50:1 |
Husqvarna 2 stroke or equiv. at 50:1 |
| Emission |
|
|
|
|
|
|
| Exhaust emissions (CO EU V)2 |
819 g/kWh |
819 g/kWh |
819 g/kWh |
819 g/kWh |
819 g/kWh |
819 g/kWh |
