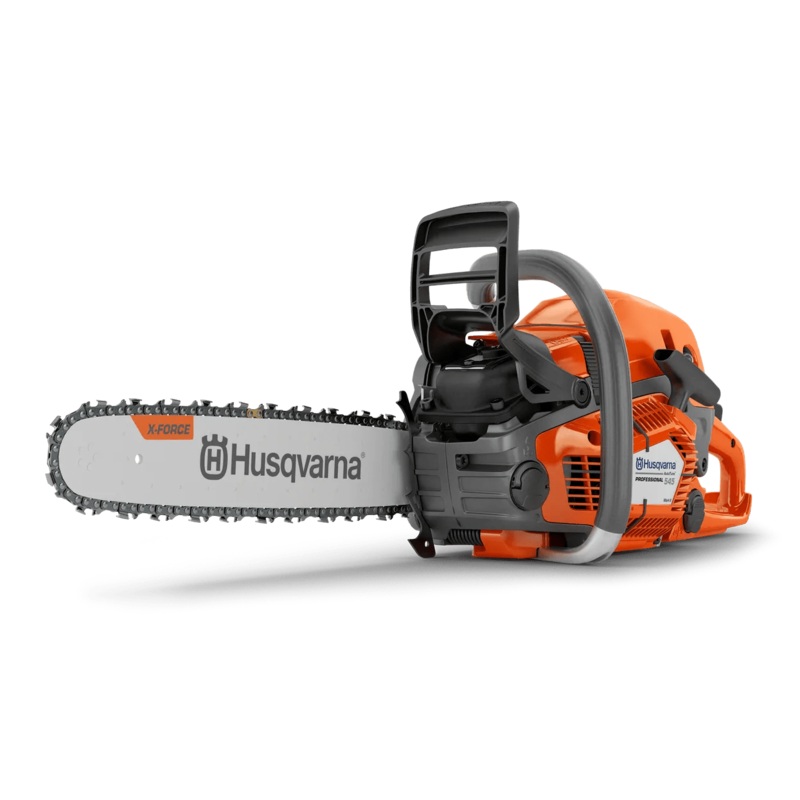

HUSQVARNA 545 Mark II-16″ & 18″ & 20″

Description

Product Highlights

Best in class cutting capacity.

The second generation of Husqvarnas 545 chainsaw is a 50cc unit thats ready for your felling, limbing and bucking of small and midsize trees. Designed for professional forestry and tree care crews, this durable saw has improved power and a slimmed-down design. A host of innovative features guarantee comfortable and efficient operation, season after season.

Specifications

Engine 20″ SN .325″ 1,3 mm SP33G
SKU: 967690602 16″ SN .325″ 1,5 mm S35G
SKU: 967690616 18″ SN .325″ 1,5 mm S35G
SKU: 967690618 20″ SN .325″ 1,3 mm SP33G
SKU: 967690628 16″ SN .325″ 1,3 mm SP33G
SKU: 967690636 18″ SN .325″ 1,3 mm SP33G
SKU: 967690638 20″ SN .325″ 1,3 mm SP33G
SKU: 967690640 Chain speed at max power 62.7 fts 62.7 fts 62.7 fts 62.7 fts 62.7 fts 62.7 fts 62.7 fts Cylinder displacement 50.1 cm 50.1 cm 50.1 cm 50.1 cm 50.1 cm 50.1 cm 50.1 cm Output shaft power¹ 3.6 hp 3.6 hp 3.6 hp 3.6 hp 3.6 hp 3.6 hp 3.6 hp Torque, max. 2.95 Nm 2.95 Nm 2.95 Nm 2.95 Nm 2.95 Nm 2.95 Nm 2.95 Nm Torque, max. at rpm 7,200 rpm 7,200 rpm 7,200 rpm 7,200 rpm 7,200 rpm 7,200 rpm 7,200 rpm Clutch engagement speed (120) 3,900 rpm 3,900 rpm 3,900 rpm 3,900 rpm 3,900 rpm 3,900 rpm 3,900 rpm Electrode gap 0.02 in 0.02 in 0.02 in 0.02 in 0.02 in 0.02 in 0.02 in Idling speed 2,800 rpm 2,800 rpm 2,800 rpm 2,800 rpm 2,800 rpm 2,800 rpm 2,800 rpm Ignition module air gap 0.01 in 0.01 in 0.01 in 0.01 in 0.01 in 0.01 in 0.01 in Maximum power speed 9,900 rpm 9,900 rpm 9,900 rpm 9,900 rpm 9,900 rpm 9,900 rpm 9,900 rpm Oil pump type Adjustable flow, no flow at idle Adjustable flow, no flow at idle Adjustable flow, no flow at idle Adjustable flow, no flow at idle Adjustable flow, no flow at idle Adjustable flow, no flow at idle Adjustable flow, no flow at idle Spark Plug NGK CMR6H NGK CMR6H NGK CMR6H NGK CMR6H NGK CMR6H NGK CMR6H NGK CMR6H Equipment Recommended bar length, min 13 in 13 in 13 in 13 in 13 in 13 in 13 in Pitch .325″ .325″ .325″ .325″ .325″ .325″ .325″ Recommended bar length, max 20 in 20 in 20 in 20 in 20 in 20 in 20 in Chain type SP33G S35G S35G SP33G SP33G SP33G SP33G Bar length 50 cm 40 cm 45 cm 50 cm 40 cm 45 cm 50 cm Bar length (inch) 20 in 16 in 18 in 20 in 16 in 18 in 20 in Sprocket type Rim 7 Rim 7 Rim 7 Rim 7 Rim 7 Rim 7 Rim 7 Gauge .050″ .058″ .058″ .050″ .050″ .050″ .050″ Dimensions Weight (excl. cutting equipment) 11.7 lbs 11.7 lbs 11.7 lbs 11.7 lbs 11.7 lbs 11.7 lbs 11.7 lbs Sound and noise Sound pressure level at operators ear 106 dB(A) 106 dB(A) 106 dB(A) 106 dB(A) 106 dB(A) 106 dB(A) 106 dB(A) Sound power level, guaranteed (LWA) 116 dB(A) 116 dB(A) 116 dB(A) 116 dB(A) 116 dB(A) 116 dB(A) 116 dB(A) Sound power level, measured 114 dB(A) 114 dB(A) 114 dB(A) 114 dB(A) 114 dB(A) 114 dB(A) 114 dB(A) Vibration Equivalent vibration level (ahv, eq) rear handle 4.6 m/s 4.6 m/s 4.6 m/s 4.6 m/s 4.6 m/s 4.6 m/s 4.6 m/s Equivalent vibration level (ahv, eq) front handle 4 m/s 4 m/s 4 m/s 4 m/s 4 m/s 4 m/s 4 m/s Lubricant Oil tank volume 0.68 US pint 0.68 US pint 0.68 US pint 0.68 US pint 0.68 US pint 0.68 US pint 0.68 US pint Lubricant type (Engine) Husqvarna 2 stroke or equiv. at 50:1 Husqvarna 2 stroke or equiv. at 50:1 Husqvarna 2 stroke or equiv. at 50:1 Husqvarna 2 stroke or equiv. at 50:1 Husqvarna 2 stroke or equiv. at 50:1 Husqvarna 2 stroke or equiv. at 50:1 Husqvarna 2 stroke or equiv. at 50:1 Emission Exhaust emissions (CO EU V)² 844 g/kWh 844 g/kWh 844 g/kWh 844 g/kWh 844 g/kWh 844 g/kWh 844 g/kWh
