Description
Product Highlights
439

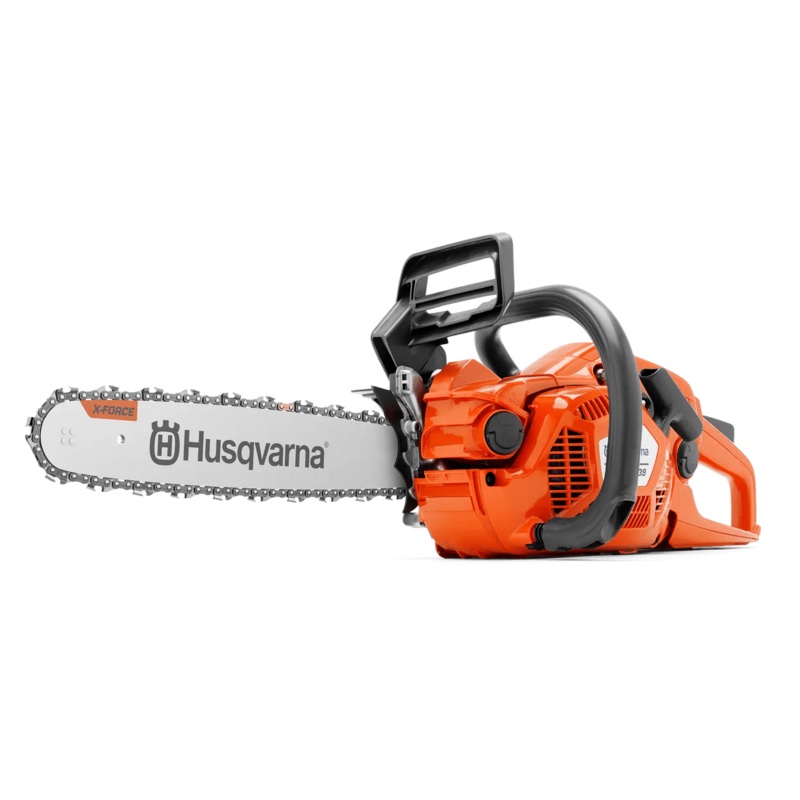

Extremely lightweight, compact and handy chainsaw for farmers and demanding consumers needing a versatile tool for lighter cutting tasks. Featuring X-Torq engine for lower fuel consumption and reduced emission levels. Smart Start, fuel pump and Auto return stop switch provides easier starting.
Specifications
|
|
| Engine |
14″ SN 3/8 mini” 1,3 mm S93G
SKU: 967158004 |
16″ SN 3/8 mini” 1,3 mm S93G
SKU: 967158002 |
| Chain speed at max power |
62.3 fts |
62.3 fts |
| Cylinder displacement |
35.2 cm |
35.2 cm |
| Output shaft power1 |
2.01 hp |
2.01 hp |
| Torque, max. |
1.57 Nm |
1.57 Nm |
| Torque, max. at rpm |
7,500 rpm |
7,500 rpm |
| Clutch engagement speed (120) |
4,200 rpm |
4,200 rpm |
| Electrode gap |
0.02 in |
0.02 in |
| Idling speed |
2,900 rpm |
2,900 rpm |
| Maximum power speed |
10,000 rpm |
10,000 rpm |
| Spark Plug |
NGK CMR6H |
NGK CMR6H |
| Equipment |
|
|
| Recommended bar length, min |
12 in |
12 in |
| Pitch |
3/8″ mini |
3/8″ mini |
| Recommended bar length, max |
16 in |
16 in |
| Bar length |
35 cm |
40 cm |
| Bar length (inch) |
14 in |
16 in |
| Gauge |
.050″ |
.050″ |
| Dimensions |
|
|
| Weight (excl. cutting equipment) |
8.64 lbs |
8.64 lbs |
| Sound and noise |
|
|
| Sound pressure level at operators ear |
100 dB(A) |
100 dB(A) |
| Sound power level, guaranteed (LWA) |
112 dB(A) |
112 dB(A) |
| Sound power level, measured |
112 dB(A) |
112 dB(A) |
| Vibration |
|
|
| Equivalent vibration level (ahv, eq) rear handle |
5.2 m/s |
5.2 m/s |
| Equivalent vibration level (ahv, eq) front handle |
8 m/s |
8 m/s |
| Lubricant |
|
|
| Oil tank volume |
0.42 US pint |
0.42 US pint |
| Emission |
|
|
| Exhaust emissions (CO EU V)2 |
860 g/kWh |
860 g/kWh |
