Description
Description:
Features:
- 2-Year Consumer & 2-Year Commercial Warranty
- Great for generators, pumps, small lawn/garden equipment

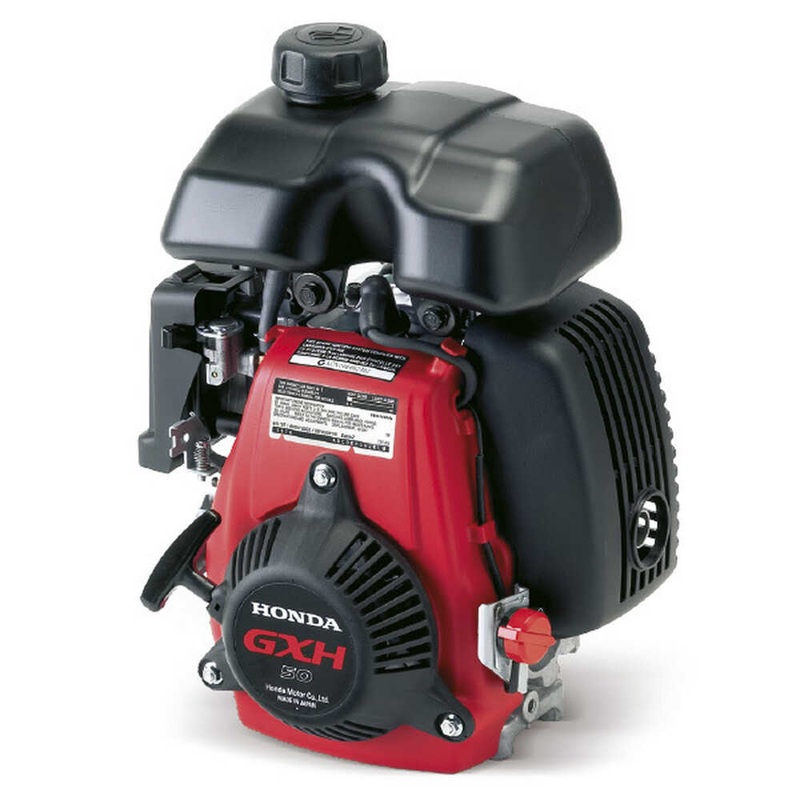

- Honda GXH50 Series Single Cylinder Air-Cooled 4-Cycle Gas Engine
- Produces 2.0 ft-lbs of torque @ 4000 RPM – Power levels are stated Net torque
- Overhead Valve (OHV) Technology
- Maximizes fuel efficiency while reducing noise and vibrations
- Ball Bearing Supported Precision Camshaft Design
- Optimized valve timing / overlap for smooth & fuel efficient power
- Splash Lubrication System
- Combined with a cast iron cylinder sleeve for increased wear resistance & long life
- Heavy-Duty Recoil Starter w/ Automatic Mechanical De-Compression System
- Requires less pulling force, for easier and quicker starting
- Float-Type Carburetor & Fuel Shut-Off Valve
- Allows for more reliable starting, safety and longevity
- Advanced chamber coating & filter helps reduce gum and varnish
- Quieter Operation
- Noise-reducing materials, advanced air intake & multi-chamber exhaust
- Automotive-Type Fuel Cap
- Makes it easier and cleaner to fill up the tank
- Easy Maintenance
- Operator-friendly oil fill/drain & spark plug location
Specifications:
- Series: Honda GX
- Style: Vertical
- Type: 4-Cycle OHV
- Cylinders: 1
- Cooling System: Air-cooled
- Displacement: 49.4 cc
- Horsepower: 2.1 HP
- Net Torque: 2.0 lb-ft
- Dry Weight: 12.1 lbs
- Made in USA: No
Engine Dimensions
- Length: 8.9 in
- Width: 10.8 in
- Height: 13.0 in
Cylinder
- Bore: 1.65 in
- Stroke: 1.42 in
- Compression Ratio: 8:1
- Bore Type: Cast Iron
Starting & Ignition
- Starting System: Recoil Only
- Ignition System: Transistorized Magneto
Lubrication
- Type: Splash
- Oil Capacity: 8.3 oz
- Oil Filter: No
Fuel System
- Fuel Type: Gasoline
- Carburetor: Float Type
- Air Cleaner: Dry (Paper)
- Fuel Tank Size: 0.2 gallons
- Fuel Tank Included: Yes
Crankshaft
- Rotation Direction: Counterclockwise
- Type: Straight
- Diameter: 5/8 in
- Length: 1-1/4 in
- End Tapped Size: 1/4″-28
- Keyway Width: 3/16 in
- PTO Height: 3-11/32 in
Warranty
- Consumer Warranty: 2 Years
- Commercial Warranty: 2 Years
