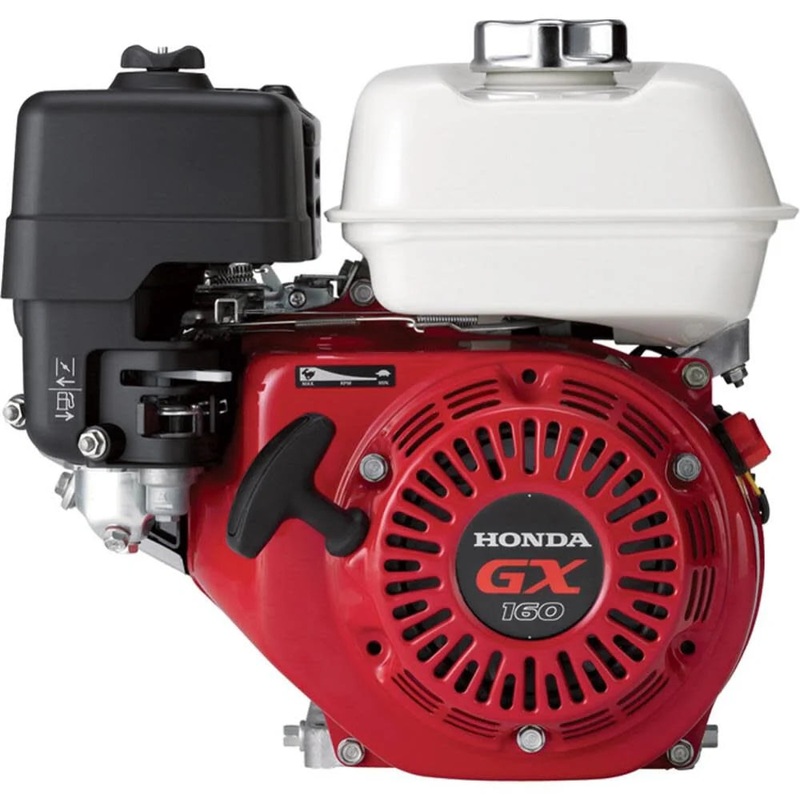

Honda GX160UT2-QX2 4.8HP 3/4″ x 2-7/16″ Horizontal Shaft Recoil Start Engine

Description

Description:

The GX160 engine is suitable for a wide range of heavy duty applications such as in construction equipment, tillers, generators, welders, pumps and other industrial applications.

Features:

• OHV design enhances combustion efficiency
• High power-to-displacement ratio
• Easy starting with an automatic decompression system and an easy-to-grip soft recoil starter handle
• High quality materials and purpose-built components which ensure reliable, long-term use
• Meets world’s most stringent environmental legislation
• Low fuel and oil consumption
• Reduced vibration and noise levels

Specifications:

• Engine Type:
• Type: Air-cooled 4-stroke OHV (Overhead Valve)
• Engine Dimensions:
• Bore x Stroke: 68 x 45 mm
• Displacement: 163 cm
• Performance:
• Net Power Output: 4.8 hp (3.6 kW) @ 3,600 rpm
• Net Torque: 7.6 lb-ft (10.3 Nm) @ 2,500 rpm
• PTO Shaft Rotation:
• Direction: Counterclockwise (from PTO shaft side)
• Compression Ratio:
• Ratio: 9.0 : 1
• Carburetor:
• Type: Butterfly
• Ignition System:
• System: Transistorized magneto
• Starting System:
• Type: Recoil Starter
• Lubrication System:
• System: Splash
• Governor System:
• System: Centrifugal Mechanical
• Air Cleaner:
• Type: Dual Element
• Oil System:
• Oil Capacity: 0.61 US qt. (0.58 L)
• Fuel System:
• Fuel Tank Capacity: 3.3 U.S. qts (3.1 liters)
• Fuel Type: Unleaded 86 Octane or Higher
• Electrical Options:
• Lamp/Charge Coil Options: 25W, 50W / 1A, 3A, 7A
• Weight:
• Dry Weight: 33 lbs (15.1 kg)
