Description
Description:
Quality and performance come standard.

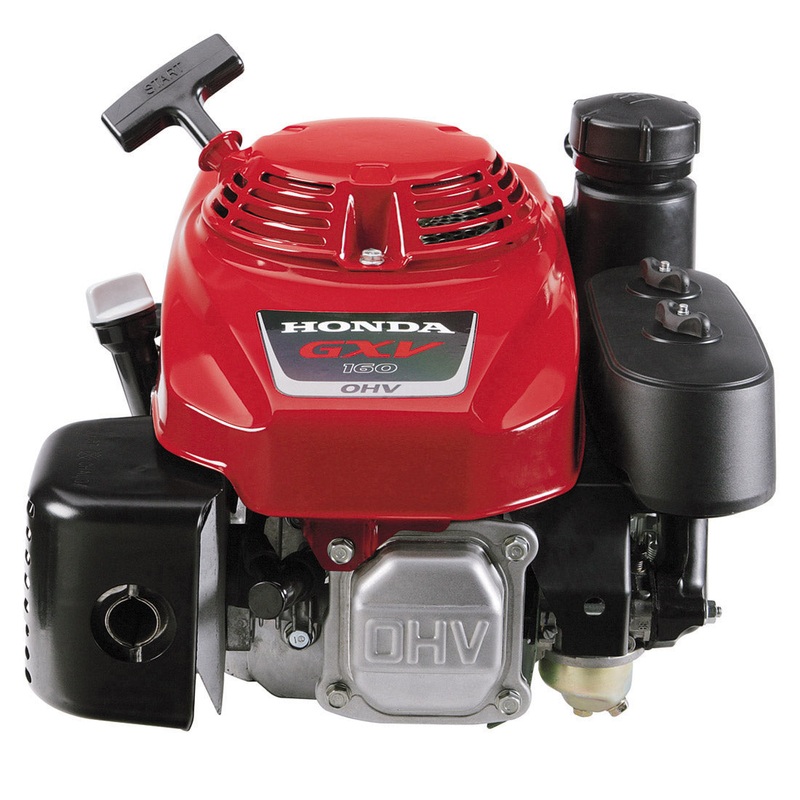

Professionals rely on the GXV160 to deliver reliable, easy starting, fuel efficient performance, day in and day out.
- Common Applications
- Lawn mowers
- Commercial lawn and garden equipment
- Forestry equipment
- Construction / industrial equipment
- Agricultural equipment
Specifications:
- General Information
- Engine Type: Air-cooled 4-stroke OHV
- Displacement: 163 cm
- Bore x Stroke: 68 mm x 45 mm
- Compression Ratio: 8.0:1
- PTO Shaft Rotation: Counterclockwise (from PTO shaft side)
- Performance
- Net Power Output: 4.3 hp (3.2 kW) @ 3,600 rpm
- Net Torque: 7.1 lb-ft (9.6 Nm) @ 2,500 rpm
- Fuel & Lubrication
- Fuel Type: Unleaded gasoline (86 octane or higher)
- Fuel Tank Capacity: 1.5 U.S. qts (1.4 liters)
- Lubrication System: Splash
- Oil Capacity: 0.69 U.S. qt (0.65 liters)
- Ignition & Starting
- Ignition System: Transistorized magneto
- Starting System: Recoil
- Carburetion & Air Filtration
- Carburetor Type: Float Type
- Air Cleaner: Dual Element
- Governor System
- Type: Centrifugal Mechanical
- Physical Dimensions & Weight
- Length: 16.3″ (415 mm)
- Width: 14.1″ (359 mm)
- Height: 13.9″ (354 mm)
- Dry Weight: 32 lbs (14.5 kg)
- Compliance & Warnings
- California Prop 65 Warning: Yes
| Width | Weight | Height | Length |
|---|---|---|---|
| 14.1Inch | 32Pounds | 13.9Inch | 16.3Inch |
