Description
Description:

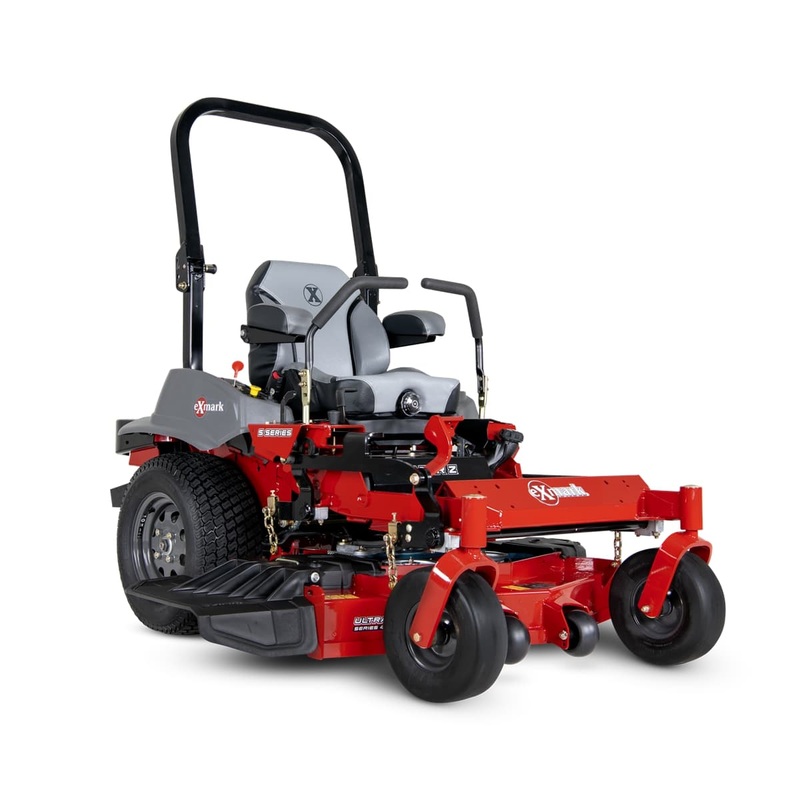

The Lazer Z S-Series makes up the core of countless landscape professionals fleets. With 30 years of refinement and innovation, the Lazer Z S-Series delivers maximum durability and Exmark Signature cut quality, with options for larger decks and more powerful engines than the Lazer Z E-Series. Select from 52-, 60-, or 72-inch UltraCut Series 4, or 60- or 72-inch UltraCut Rear Discharge cutting decks, with a choice of powerful Kawasaki or EFI Kohler commercial engines.
In all, the Lazer Z S-Series delivers the power and productivity to make quick work of large jobs, with the reliability and long-term value Exmark owners expect. Be sure to check out the entire Lazer Z family, including the
the newLazer Z X-Series zero-turn mowers.
Specifications:
- General Information
- UPC: 193308242323
- Width / Cutting Deck: 72″
- Drive: Hydro-Drive
- Starter: Electric
- Steering Control:
- Hydraulically dampened twin levers, adjustable fore and aft
- 2-position height adjustment
- Adjustable dampers (3 positions) for customized drive responsiveness
- Chassis & Tires
- Tractor Frame: Unibody, welded, heavy-duty 1.5″ x 3″ tubular steel
- Caster Forks: 0.50″ thick caster yoke arms
- Front Caster Tires: 13 x 6.5-6, smooth tread, semi-pneumatic
- Drive Tires: 24 x 12-12, 4-ply Grassmaster TL
- Engine & Performance
- Engine Brand: Kohler
- Engine Model: ECV749
- Engine Displacement: 747 cc
- Engine Series: Command EFI
- Engine Spec: ECV749
- Engine Speed: 3,750 RPM
- Air Filter: Heavy-duty canister air filtration system
- Fuel Type: Gas EFI
- Fuel Capacity: 12-gallon single fuel tank with single fill location
- Speed:
- 010.0 mph (16.1 km/h) forward
- 07.0 mph (11.3 km/h) reverse
- Transmission & Drive System
- Transmission Speeds: Infinitely Variable
- Drive Description:
- Two Exmark exclusive Parker unitized pump and wheel motor systems
- No hoses, integrated cooling fans, shock valve
- 1.7-quart integrated reservoir, spin-on filter, heavy-duty components
- 12 cc pumps and 17.1 cubic inch motors
- Drive Wheel Release: Allows unit movement without engine running
- Cutting System
- Deck Style: Floating Deck
- Deck Style Description: Full-floating UltraCut Series 4
- Side discharge standard
- Option to bag or mulch
- Deck Construction:
- 10-gauge top (formed & continuously seam welded)
- 7-gauge side skirt
- 7-gauge formed & welded spindle mounting locations
- Cutting Heights: 1.0″ to 5.5″ in 0.25″ increments
- Blade Tip Speed: Approximately 18,500 fpm
- Blades: 3 Blades (24.50″ length each)
- Safety & Convenience
- Safety Package:
- Operator Presence Controls (OPC)
- Drive system interlock with safety interlock system indicators
- Parking Brake: Lever actuated disc brake
- PTO Engagement: MagStop electromagnetic 200-ft-lb clutch with spot brake
- Deck Lift: Foot-controlled deck lift for height adjustment and transport
- Electrical & Additional Features
- Electrical: 12-volt battery with 20-amp alternator
- Fuel Indicator: Yes (electronic sender)
- Standard Features: Engine hour meter & cup holder
- Carb Compliant: Yes
- ROPS (Roll Over Protection System): 2-post foldable ROPS standard with seat belt and latch
- Dimensions & Weight
- Width: 84.9″
- Height: 70.5″
- Length: 86.1″
- Curb Weight: 1250 lbs
| Width | Weight | Height | Length |
|---|---|---|---|
| 84.9Inch | 1250Pounds | 70.5Inch | 86.1Inch |
