Description

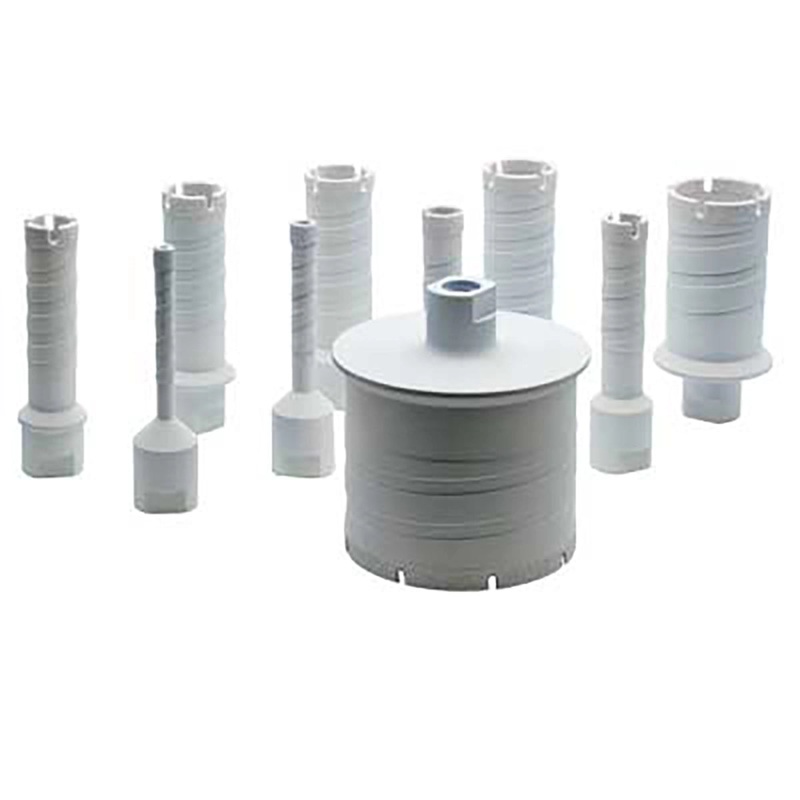

Alpha Tools Vacuum-Brazed Core Bits
The Alpha Tools Vacuum-Brazed Core Bits deliver unmatched cutting power, exceptional durability, and consistently fast, clean drilling performance.
Features
- High-performance drilling through tough materials including granite, porcelain, concrete, marble, and engineered stone
- Advanced vacuum-brazed technology maximizes diamond retention for exceptional durability and extended tool life
- Produces fast, smooth cuts with reduced chipping and smooth edges
- Designed for flexible operation in both wet and dry drilling applications
| Specifications | |||||||||||||
| Part No. | VBC7008 | VBC7010 | VBC7013 | VBC7019 | VBC7022 | VBC7125 | VBC7132 | VBC7135 | VBC7138 | VBC7145 | VBC7250 | VBC7258 | VBC7260 |
| Diameter | 5/16″ | 3/8″ | 1/2″ | 3/4″ | 7/8″ | 1″ | 1-1/4″ | 1-3/8″ | 1-1/2″ | 1-3/4″ | 2″ | 2-1/4″ | 2-3/8″ |
| Maximum RPM | 12,000 | 12,000 | 12,000 | 12,000 | 12,000 | 12,000 | 12,000 | 12,000 | 12,000 | 12,000 | 12,000 | 8,400 | 8,400 |
| Type | Wet/Dry | Wet/Dry | Wet/Dry | Wet/Dry | Wet/Dry | Wet/Dry | Wet/Dry | Wet/Dry | Wet/Dry | Wet/Dry | Wet/Dry | Wet/Dry | Wet/Dry |
| Threads | 5/8″-11 | 5/8″-11 | 5/8″-11 | 5/8″-11 | 5/8″-11 | 5/8″-11 | 5/8″-11 | 5/8″-11 | 5/8″-11 | 5/8″-11 | 5/8″-11 | 5/8″-11 | 5/8″-11 |
